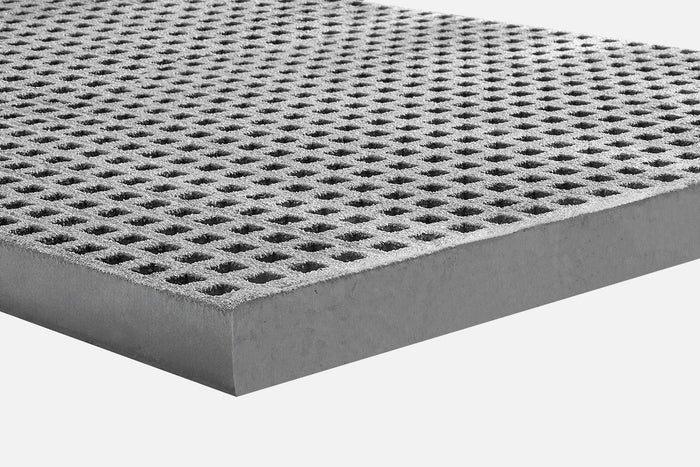

Mini Mesh GRP Grating
Mini Mesh GRP Grating for Platforms, Walkways, Flooring and Covers
Mini-Mesh Grating also known as Micro-Mesh Grating, has a 12mm x 12mm open mesh area. The smaller opening prevents objects as small as 13mm from falling through and complies with the European 15mm ball falling test requirement. The smaller holes also offer smooth movement for small wheeled trolleys, prams, wheelchairs etc.
GRP Mini Mesh Grating is a versatile, reliable, high quality flooring and a credible alternative to steel mesh grating. With proven reliability in high traffic areas giving excellent slip resistance it works equally well in all sorts of aggressive and corrosive environments and at extremes of temperature.
All grating products listed have a Type O - Orthophthalic Polyester resin finish. If required, resins such as Isophthalic polyester or Vinylester can be used in the manufacture of our Grating.
Anti Slip Surface - tested in accordance with BS 7976 with slip potential rated 'Extremely Low', achieving only 5% reduction after 1 million footfalls. Durable 10-year guarantee for normal use environments.
Fire Resistant - meets Class B fire rating in accordance with BS EN 13501.
Lightweight - only 1/3 the weight of steel, GRP Grating is a convenient, fast, and safe installation material, reducing the risk of manual handling injuries, and can be easily cut on-site without the need for hot works permits.
Non-Conductive - GRP acts as an insulator making it ideal for application in and around HV plant and equipment. It can also be supplied with a carbon finish to provide static discharge characteristics needed in electro-static sensitive environments.
Mini Mesh GRP Grating
GRP Grating structure, load deflection.It is designed to be long lasting with a high strength to weight ratio. Moulded Glass Reinforced Plastic (GRP) grating is formed using continuous interwoven glass fibres as reinforcement material and resin as the matrix with continuous solidification through a mould system. The uniform construction provides excellent bi-directional mechanical properties.
Standard panel sizes
2007 x 1007mm, 30mm thickness.
4047 x 1007mm, 30mm thickness.
Special sizes can be manufactured on request.
Tolerance per full panel
+/- 3mm in length and width direction
+/- 1.5mm in thickness direction
Warp tolerance: Length: 4.5mm per metre, Width: 2.5mm
Tolerance for cutting
Length: +/- 5mm, Width: +/- 5mm, Circle: +/- 2mm
Slip resistant
Anti-slip gritted grating has quartz crystal bonded to the top surface ensuring an extremely durable and slip resistant surface. This type of grating has one of the highest degrees of slip resistance measured for a walking surface.
A laboratory slipperiness assessment was undertaken by the Health & Safety Laboratory (UK) in accordance with guidelines recommended by United Kingdom Slip Resistance Group (Issue 2,2000) and protocols outlined in BS 7976:2.
Corrosion and chemical resistant
Corrosion is a major problem within industries such as chemical, steel, food and beverage, water and wastewater, power – the list goes on. GRP Grating is particularly designed to provide safe, long-lasting, economical and worry-free solutions in environments where chemicals and other corrosives attack metal, wood and similar materials.
All grating products listed have a Type O - Orthophthalic Polyester resin finish. Depending on the environment, resins such as Isophthalic polyester, or Vinylester may be used in the manufacture of our Grating.
Fire resistant
GRP Grating has been tested in accordance with the ASTM E–84 tunnel test. Depending on the resin type it achieves a Class 1 flame spread rating of between 5–25 or less.

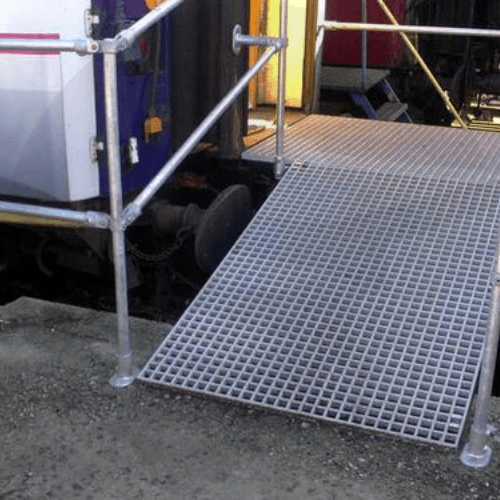

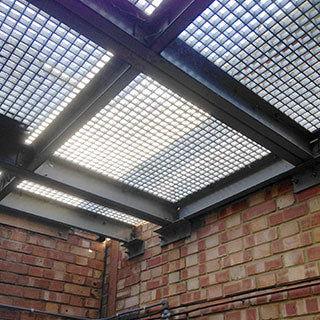

GRP Mini Mesh Grating can be used on:
Access gangways, access ramps, walkways, corrosive and chemical environments, platforms, pontoons, finger pontoons, marinas, jetties, bridges, breakwaters, pump out and refuelling stations, assembly Lines, washbays, work stations, flooring, trench covers, cat walks, loading docks, risers, gantries, plating areas, mines, food processing facilities, engineering environments, offshore facilities, industrial, commercial and domestic sites.
